16K indtastningshukommelse

RADIUS, TACACS+

IEEE 802.3at, IEEE 802.3az, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3ad (LACP), IEEE 802.3x, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.1x, IEEE 802.3af

Desktop, monterbar på stativ

1 x ARM: 800 MHz

IGMP, IGMPv2, IGMPv3, MLD, MLDv2

TLS 1.2, TLS 1.3

IPv4, IPv6, RADIUS, DHCP, SNMP 1, SNMP 2, SNMP 3, RMON 1, RMON 2, RMON 3, RMON 9, TCP/IP, UDP, HTTPS, TFTP, HTTP, Syslog

Gigabit Ethernet

190 W

64 MB

10KB

Virtuelle grænseflader (VLANs): 256 ACLer per system: 100 ARP-indtastninger: 512 IPv4 ruter (statisk): 32 Pakkebufferstørrelse: 1, 5 MB IPv6 ruter (statisk): 32 IGMP multicast-grupper: 512

Link/aktivitet, ports transmissionshastighed, strøm, blæser, PoE max

2 blæsere, ACL support, QoS, IGMP snooping, MDL snooping, auto video VLAN, Auto VoIP, EEE, GVRP, MAC based VLAN, Private VLAN, Protokol-baseret VLANs support, Voice VLAN, LLDP-MED, 802.1x autentificering, VoIP support, VLAN-understøttet, CLI administration, ACL MAC-baseret, DSCP support, dobbelt firmware-billeder, cloud-backup, gem og send, WRR, VLAN Tagging, IP subnet-baserede VLANs support, GARP, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, DHCP videresendelse, DHCP klient, DHCP snooping, ICMP Router Discovery Protocol (IRDP), Link Aggregation, Guest VLAN, MAC-lockdown, DAI, DoS protection, kabeltest

Latens (1000 Mbps): 3.35 µs Latency (1000 Mbps Fiber): 2.5 µs Latens (10 Gbps Fiber): 2.124 μs Båndbredde: 128 Gbps Videresendelsesrate (64‑byte pakker): 95.24 Mpps

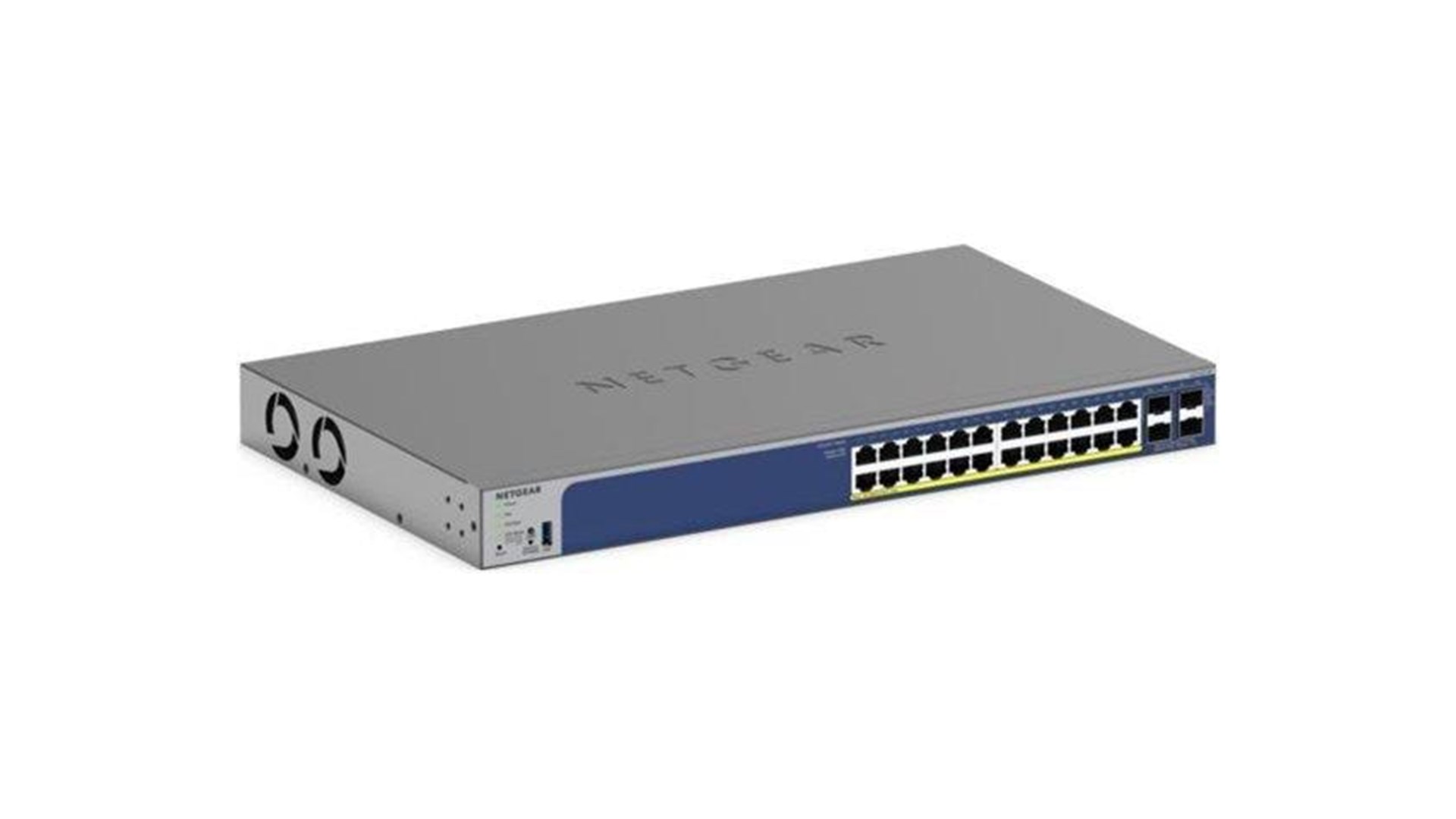

Switch - 24 porte - L3 Lite - smart

PoE+

24 x 10/100/1000 (PoE+) + 4 x SFP+

512 MB DDR SDRAM

Netgear

1

1

Intern strømforsyning

43.2

440

3780

257

24 x 10/100/1000 Base-T RJ-45 PoE+ 4 x 100 / 1000Base-X SFP+ Administration

1,252,990 timer

FCC Klasse A certificeret, RCM, ICES Class A, VCCI, KC, BSMI, UKCA, CB, CSA

Strømledning, portbeskyttelseshætter, gummifodsæt

Inkluderet

Den Europæiske Union, United Kingdom
