(understøtter 12./13. og 14. Generation Intel Core / Pentium Gold / Celeron)

Bundkort - ATX

Intel Z790

LGA1700

1

ASRock

1 x SPI - intern stik 1 x audio - intern stik 1 x Thunderbolt - intern stik 4 x USB 2.0 - intern stik 4 x USB 3.2 Gen 1 - intern stik 1 x USB 3.2 Gen 2x2 - intern stik 1 x højttaler - intern stik

SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 SATA-600 / PCIe 4.0 -stikforbindelser: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 5.0 -stikforbindelser: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -stikforbindelser: 4 x Hyper M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5

1 x CPU 4 x DIMM 288-pins 1 x PCIe 5.0 x16 1 x PCIe 4.0 x16 (x4-modus) 1 x PCIe 3.0 x1 1 x M.2 socket (til trådløst modul) 6 x M.2 socket (2260/2280 M.2 Key M-åbning)

24-pin hovedstrøm-konnektor, 2 x 8-pins ATX12V stikforbindelser

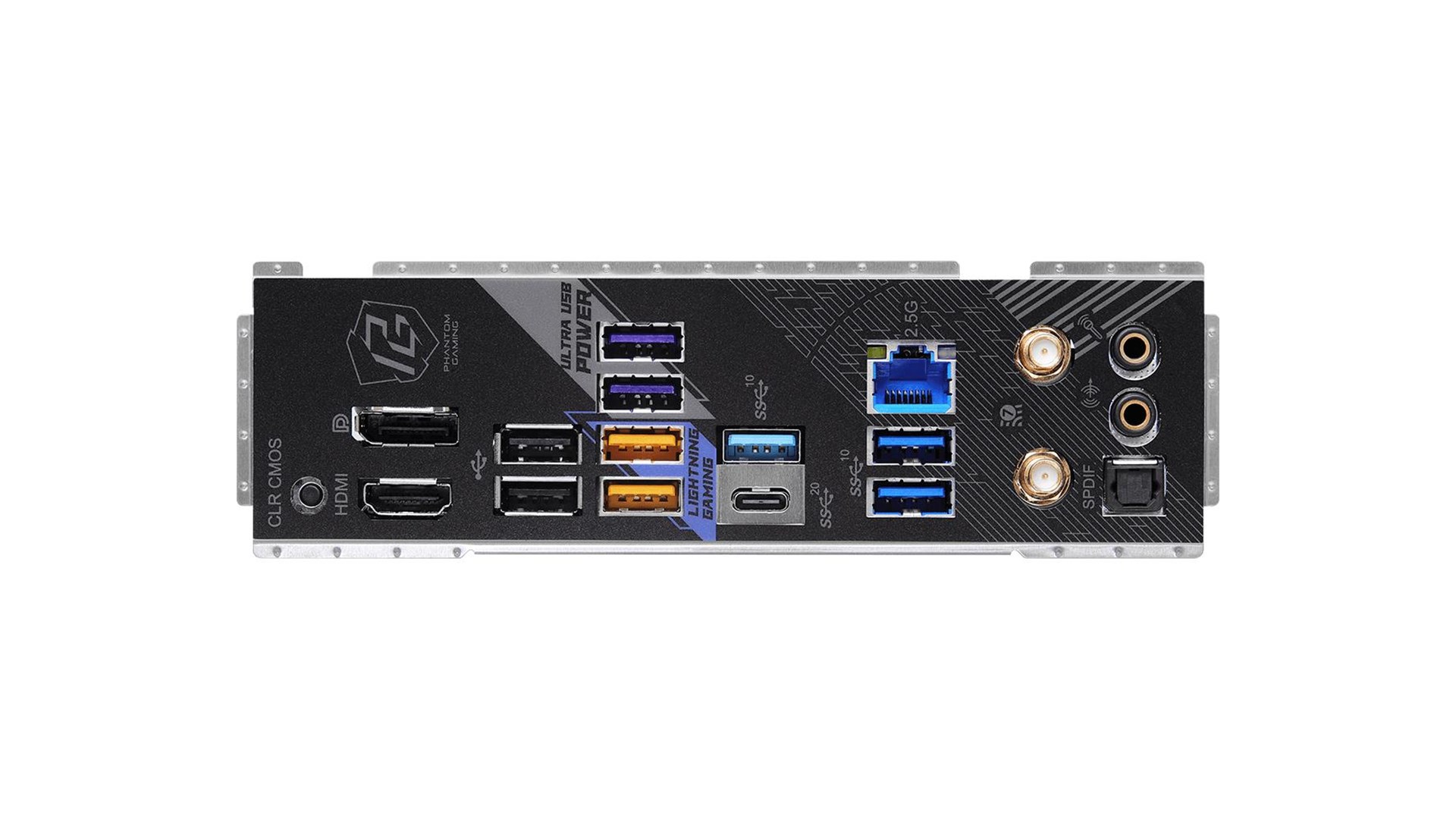

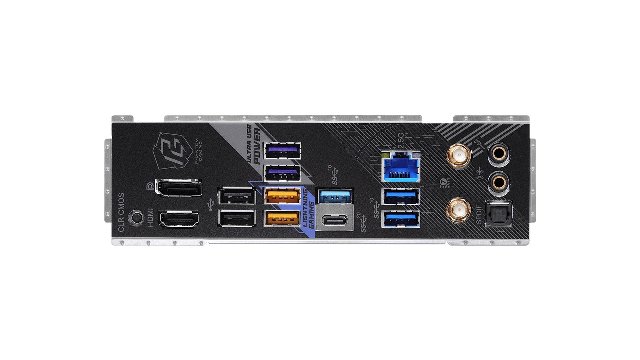

1 x HDMI 1 x DisplayPort 1 x USB-C 3.2 Gen2x2 1 x SPDIF-ud 4 x USB 3.2 Gen 2 3 x USB 3.2 Gen 1 2 x USB 2.0 1 x LAN 1 x audio linje-ud - mini-jack 1 x mikrofon - mini-jack 2 x antenne

Ikke-ECC

5600 MHz (O.C.), 6000 MHz (O.C.), 4000 MHz, 4800 MHz, 6800 MHz (O.C.), 3600 MHz, 4400 MHz, 8000 MHz (O.C.)

Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP) 3.0

DDR5

Ikke bufferet

206158430208

UEFI BIOS

AMI

ASRock Instant Flash, 8 Layer PCB, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Easy RAID Installer, ASRock EZ Mode, 2oz Copper PCB, præmonteret I/O-skjold, Intel Turbo Boost Max Technology 3.0, ASRock Hyper BCLK Engine, DIY Friendly Design, forstærkede PCIe-åbninger, Server-Grade Low-Loss PCB, Surface Mount Technology (SMT), Intel Hybrid Technology, ASRock Auto Driver Installer, Intel Adaptive Boost Technology (ABT), Intel Thermal Velocity Boost (TVB), ASRock Lightning Gaming Ports, 20K sorte kapacitorer, ASRock Polychrome RGB, 20+1+1 Phase Power Design

Killer E3100G

2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4

HD Audio (8-kanaler)

Realtek ALC4082

High Definition Audio
