Ryzen (understøtter 3. Generation Ryzen and New Generation Ryzen med Radeon Graphics)

Bundkort - ATX

AMD B550

Socket AM4

1

ASRock

4 x USB 2.0 - intern stik 4 x USB 3.2 Gen 1 - intern stik 1 x audio - intern stik 1 x USB-C Gen2 - intern stik

SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 ASMedia ASM1061: SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA PCIe 4.0 -stikforbindelser: 1 x M.2 SATA-600 / PCIe 3.0 -stikforbindelser: 1 x Ultra M.2

1 x CPU 4 x DIMM 288-pins 3 x PCIe 4.0 x16 (PCIe 4.0 x16, x8/x8, x8/x8/PCIe 3.0 x4 tilstande (med Ryzen serie CPUs Matisse); PCIe 3.0 x16, x8/x8, x8/x8/x4 tilstande (med Ryzen serie CPUs Renoir)) 2 x PCIe 3.0 x1 1 x M.2 socket (2230 M.2 Key E-åbning)

24-pin hovedstrøm-konnektor, 2 x 8-pins ATX12V stikforbindelser

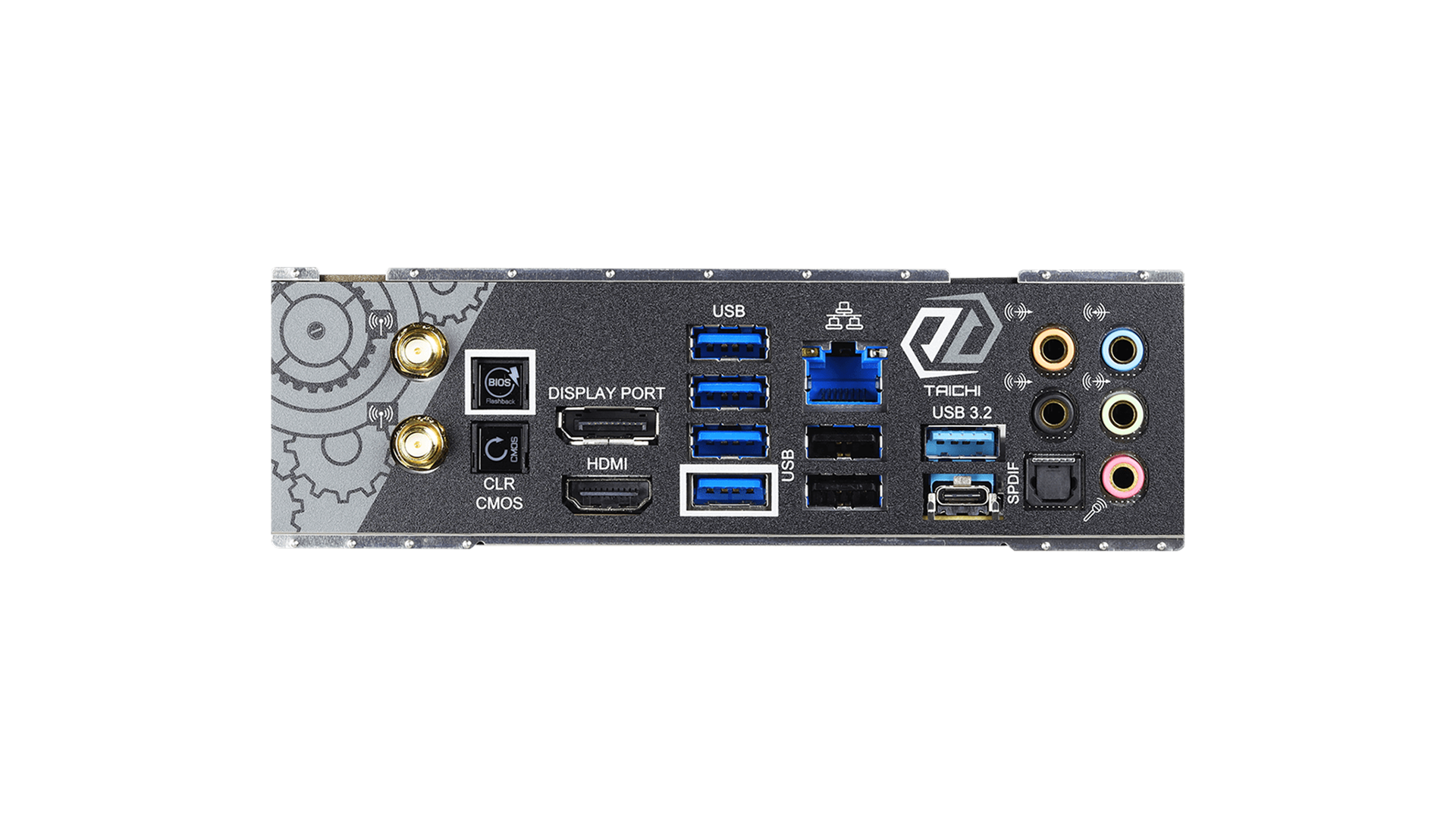

1 x TOSLINK 1 x DisplayPort 1 x HDMI 1 x TOSLINK 2 x USB 2.0 4 x USB 3.2 Gen 1 1 x audio linje-ind - mini-jack 1 x audio linje-ud - mini-jack 1 x mikrofon - mini-jack 1 x USB 3.2 Gen 2 1 x USB-C Gen2 1 x audio linje-ud (centrum/subwoofer) - mini-jack 1 x audio linje-ud (bagtil) - mini-jack

Drivers & Utilities, ASRock A-Tuning, Antivirus (prøveversion), Google Chrome Browser, Google ChromeToolbar, ASRock XFast LAN, ASRock Polychrome SYNC

Plug and Play, FCC, EuP Ready, ErP Ready, DisplayPort 1.4, HDCP 2.3

30.5 cm

4 x Seriel ATA kabel

ASRock WiFi 2.4/5GHz Antenna, 2 x M.2 skruer, skruetrækker, 2 x standoff til M.2 sokkel

24.4 cm

Ikke-ECC, ECC (drift i ikke-ECC tilstand)

2400 MHz, 2133 MHz, 2667 MHz, 2933 MHz, 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3800 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4200 MHz (O.C.), 4333 MHz (O.C.), 4600 MHz (O.C.), 4533 MHz (O.C.), 3200 MHz, 4666 MHz (O.C.), 4733 MHz (O.C.), 4466 MHz (O.C.)

Dobbelt kanal hukommelses arkitektur, AMD Memory Profile (AMP), understøttede ECC-moduler fungerer i ikke-ECC-tilstand

DDR4

Ikke bufferet

137438953472

JumperFree, SMBIOS 2.3 understøttet, UEFI BIOS, ACPI 5,1 support

Aktivering af LAN (wake on LAN = WOL)

AMI

CPU kernetemperatur, chassis temperatur, takometer til CPU-blæser, takometer til chassis-blæser, systemspænding, CPU kerne-spænding

ASRock Instant Flash, HDCP kompatibel, 15µ Gold Contact, 16 Phase Power Design, ASRock Dr. Debug, AMD CrossFireX-teknologisupport, AMD Quad CrossFireX-teknologisupport, AMD 3-vejs CrossFireX teknologisupport, Digi Power Design, ESD Protection, Gold Plated Audio Hardware, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), Clear CMOS Button, Direct Drive Technology, ASRock Full Spike Protection, ASRock APP Shop, ASRock Super Alloy, High Density Glass Fabric PCB, ASRock Full HD UEFI, Dr.MOS MOSFET, XXL Aluminum Alloy Heatsink, Nahimic Audio Enhacer, I/O Armor, ASRock Live Update, Premium Memory Alloy Choke, Nichicon 12K Black Caps, Matte Black PCB, TI NE5532 Premium Headset Amplifier, Premium 60A Power Choke, 120dB SNR DAC with Differential Amplifier, Pure Power-In, PCB Isolate Shielding, ASRock Ultra USB Power, 2oz Copper PCB, ASRock Full Coverage M.2 Heatsink, ASRock Steel Slot Gen4, ASRock Hyper M.2

Intel I225-V

2.5 Gigabit Ethernet, 802.11a/b/g/n/ax, Bluetooth 5.1

HD Audio (8-kanaler)

Realtek ALC1200

High Definition Audio, Premium Blu-ray audiosupport

2 GB
